SKU: 33004898

Western Reflections Vintage Craftsman Door Glass - 23.313" x 17.938"

$511.86

Plastic frame width and height (outer edge). Measurement Guides

23" x 18"

Caming Color: Patina
Frame Color: Craftsman Premium Paint and Stain-Ready Tan Plastic

Typically ships in 7-10 business days

Shipping calculated at checkout.

Highlights

• Handcrafted decorative glass.
• Privacy Rating of 6.
• Panels are thermally sealed for air- and water-tight performance.
• 20 year glass seal warranty.

Description

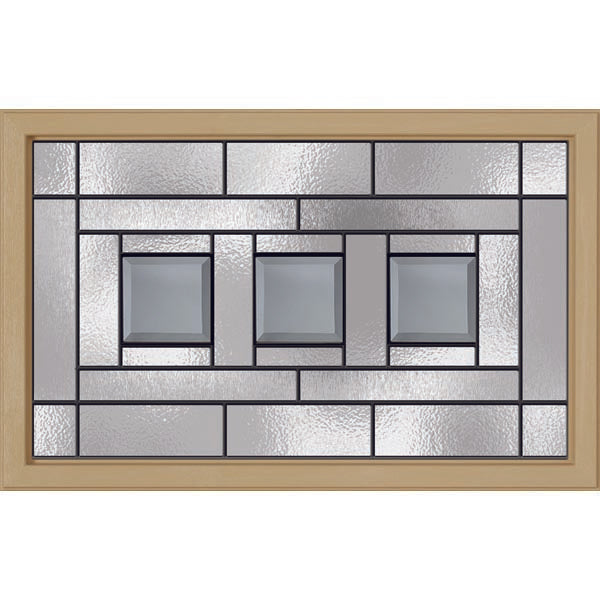

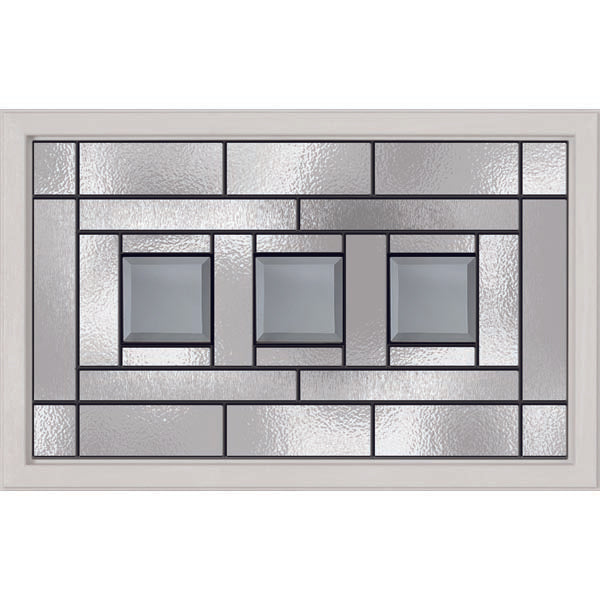

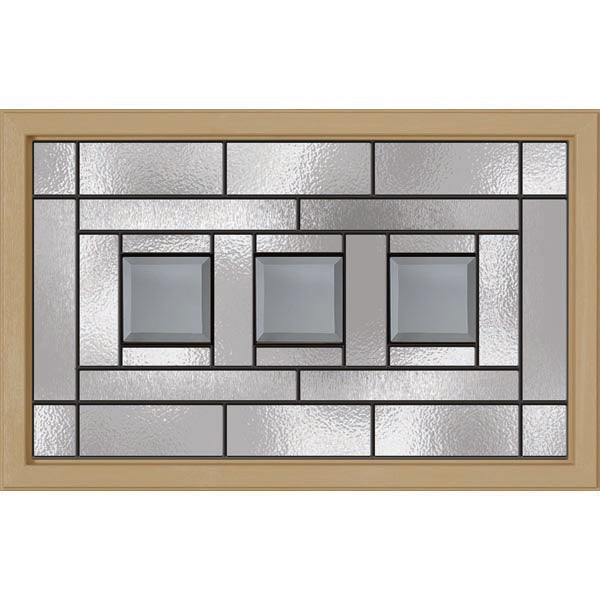

Vintage Craftsman Door Glass
Vintage Craftsman is Arts and Crafts at its purest. Its bold geometric patterns, highlighted with clear bevel squares and a patina finish, will communicate your appreciation for well designed, honest architecture. This member of our Craftsman Collection offers a medium privacy level.

Door Glass with Frame Kit
This door glass kit is designed to fit a wide variety of exterior side windows (side lights) manufactured by Therma Tru, Masonite, Jeld-Wen, PlastPro and many others. This kit can be used to replace existing glass in a side window and contains 1 insulated glass panel, 1 door glass frame set, 1 pack of specially designed screws, and 1 pack of screw covers. The door glass frame set consists of 1 inner and 1 outer high performance, molded plastic frame. The outer frame has an air and water tight, factory applied seal that bonds the frame to the glass. Before ordering, ensure that the existing glass is held in place by raised molding. The guide below provides side window and frame kit dimensions:

Replacing Glass
Door Material: Steel or Fiberglass
Door Width: 36”, 34”, 32” and 30” (+/- 0.75”)
Door Height: 6’8” and 7’0” (+/- 0.75”)
Door Thickness: 1.75”
Frame Kit Width: 23.313” (+/- 0.25”)
Frame Kit Height: 18” (+/- 0.25”)

Please consult the Measurement Guide for any questions on identifying the correct size door, side window or door glass frame kit for your entry system.

Typical Industry Names for the Kit
Craftsman Door Light
+ Read More

Guaranteed Fit Program

Guaranteed Fit Program

In a perfect world, everything fits right – the first time. You can achieve this enlightened state of mind with Zabitat’s Risk-Free Fit Guarantee. Submit the requested information and a photo or two of your application (front door, slider, etc.). Our trained experts will review your submission within 1 business day. If everything is copacetic, you will receive a verification for fit. If your product selection won’t work with your application, you will receive a response with new product recommendations or other options.

Moral of the story is, "Measure twice, order once!". In the rare event that a Zabitat expert gets it wrong you are guaranteed a full refund or an exchange if the proper size unit is available, and return shipping fees are on us. *Please note, we are unable to guarantee a fit for arch (rounded) glass.

Specifications

  • Frame Type: Craftsman Architectural Plastic
  • Manufacturer: Western Reflections
  • Category: Decorative Door Glass
  • Glass Panel Thickness: 1 Inch
  • Glass Shape: Rectangle
  • Glass Insulation: Triple Pane
  • Glass Style: Craftsman
  • Door Cut-Out Dimensions: 22.313 in. x 16.938 in.
  • Door Thickness: 1-3/4 in.
  • Product Weight (lbs.): 12
  • Glass Size: 21.313 in. x 15.938 in.
  • Frame Kit Size: 23.313 in. x 17.938 in.
  • Impact Resistant: No
  • Energy Efficient: No
  • Frame Light Pattern: 1 Light
  • Tempered Safety Glass: Yes
  • Privacy Rating: 6
  • STC Rating: 31
  • Warranty: 20 Year Glass Seal Warranty
  • Light Pattern: 1 Light
