SKU:
33004028
Western Reflections Fontana Door Glass - 18" x 41.9" Frame Kit
$648.16
Unit price
/
Unavailable
18" x 42"
Typically ships in 7-10 business days
Highlights
Highlights
• Handcrafted decorative glass.
• Privacy Rating of 5.
• Panels are thermally sealed for air- and water-tight performance.
• 20 year glass seal warranty.
• Privacy Rating of 5.
• Panels are thermally sealed for air- and water-tight performance.
• 20 year glass seal warranty.
Description
Description

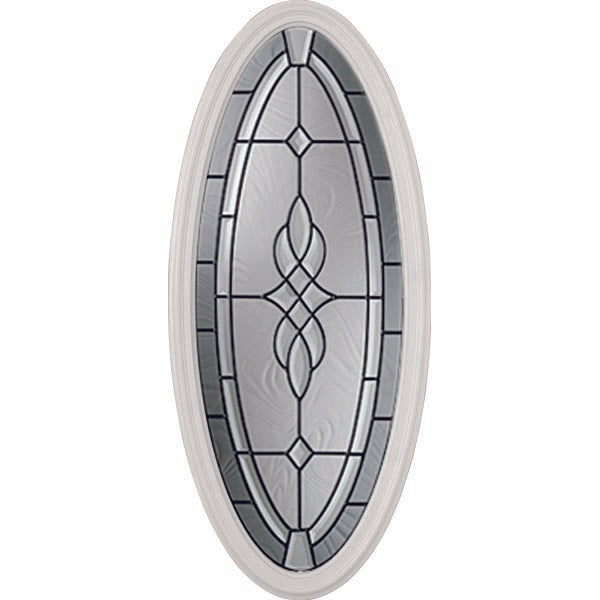

Fontana Door Glass
Glass-in-motion might be one way to describe Fontana. Dramatic swirls throughout the clear and translucent gray doorglass give a dynamic and painterly touch to your entrance door. A formal arrangement of bevel clusters and patina or satin nickel finish rounds out Fontana’s Classic styling. It provides a medium level of privacy.
Door Glass with Frame Kit
This door glass kit is designed to fit a wide variety of exterior side windows (side lights) manufactured by Therma Tru, Masonite, Jeld-Wen, PlastPro and many others. This kit can be used to replace existing glass in a side window and contains 1 insulated glass panel, 1 door glass frame set, 1 pack of specially designed screws, and 1 pack of screw covers. The door glass frame set consists of 1 inner and 1 outer high performance, molded plastic frame. The outer frame has an air and water tight, factory applied seal that bonds the frame to the glass. Before ordering, ensure that the existing glass is held in place by raised molding. The guide below provides side window and frame kit dimensions:
Replacing Glass
Door Material: Steel or Fiberglass
Door Width: 36”, 34”, 32” (+/- 0.75”)
Door Height: 6’8” and 7’0” (+/- 0.75”)
Door Thickness: 1.75”
Frame Kit Width: 18” (+/- 0.25”)
Frame Kit Height: 41.9” (+/- 0.25”)
Please consult the Measurement Guide for any questions on identifying the correct size door, side window or door glass frame kit for your entry system.
Typical Industry Names for the Kit
Small/Medium Oval, Three Quarter Oval
Glass-in-motion might be one way to describe Fontana. Dramatic swirls throughout the clear and translucent gray doorglass give a dynamic and painterly touch to your entrance door. A formal arrangement of bevel clusters and patina or satin nickel finish rounds out Fontana’s Classic styling. It provides a medium level of privacy.
Door Glass with Frame Kit
This door glass kit is designed to fit a wide variety of exterior side windows (side lights) manufactured by Therma Tru, Masonite, Jeld-Wen, PlastPro and many others. This kit can be used to replace existing glass in a side window and contains 1 insulated glass panel, 1 door glass frame set, 1 pack of specially designed screws, and 1 pack of screw covers. The door glass frame set consists of 1 inner and 1 outer high performance, molded plastic frame. The outer frame has an air and water tight, factory applied seal that bonds the frame to the glass. Before ordering, ensure that the existing glass is held in place by raised molding. The guide below provides side window and frame kit dimensions:
Replacing Glass
Door Material: Steel or Fiberglass
Door Width: 36”, 34”, 32” (+/- 0.75”)
Door Height: 6’8” and 7’0” (+/- 0.75”)
Door Thickness: 1.75”
Frame Kit Width: 18” (+/- 0.25”)
Frame Kit Height: 41.9” (+/- 0.25”)
Please consult the Measurement Guide for any questions on identifying the correct size door, side window or door glass frame kit for your entry system.
Typical Industry Names for the Kit
Small/Medium Oval, Three Quarter Oval
+ Read More
Guaranteed Fit Program
Guaranteed Fit Program
This product is not currently eligible for the Guaranteed Fit Program.
Specifications
Specifications
- Frame Type: Evolve High Performance Plastic
- Manufacturer: Western Reflections
- Category: Decorative Door Glass
- Glass Panel Thickness: 1 Inch
- Glass Shape: Medium Oval
- Glass Insulation: Triple Pane
- Glass Style: Classic
- Door Cut-Out Dimensions: 16.514 in. x 40.389 in.
- Door Thickness: 1-3/4 in.
- Product Weight (lbs.): 25
- Glass Size: 15.514 in. x 39.389 in.
- Frame Kit Size: 18 in. x 41.9 in.
- Impact Resistant: No
- Energy Efficient: No
- Frame Light Pattern: 1 Light
- Tempered Safety Glass: Yes
- Privacy Rating: 5
- STC Rating: 31
- Warranty: 20 Year Glass Seal Warranty
- Light Pattern: 1 Light
