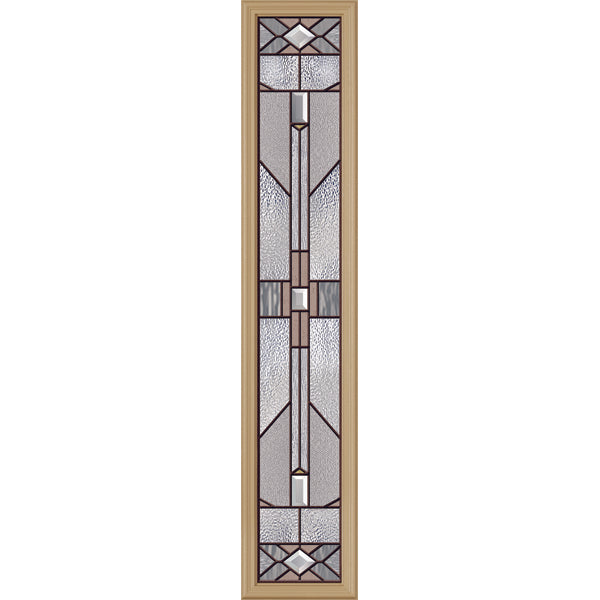

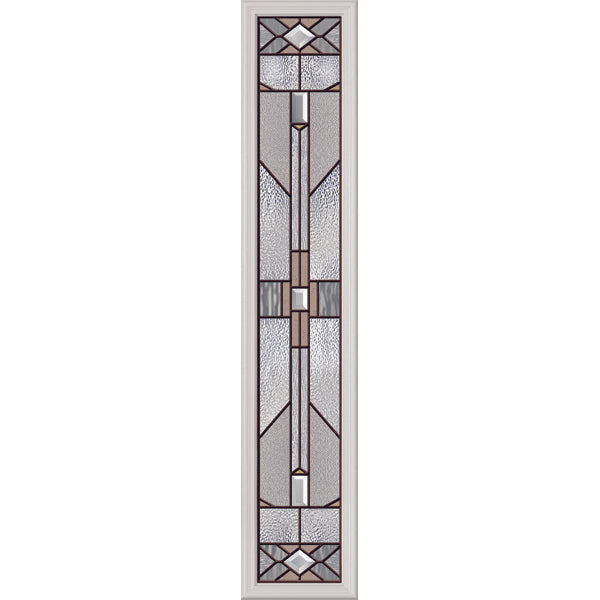

ODL Mohave Door Glass - 10" x 50" Frame Kit

Mohave Door Glass
Shades of the desert accent your home’s entrance door. A blend of amber, bronze, and gray shades and a mix of translucent, clear, and textured glass make a truly Eclectic statement. Mohave features an oil-rubbed bronze finish and medium-high privacy level.

Door Glass with Frame Kit
This door glass kit is designed to fit a wide variety of exterior side windows (side lights) manufactured by Therma Tru, Masonite, Jeld-Wen, PlastPro and many others. This kit can be used to replace existing glass in a side window and contains 1 insulated glass panel, 1 door glass frame set, 1 pack of specially designed screws, and 1 pack of screw covers. The door glass frame set consists of 1 inner and 1 outer high performance, molded plastic frame. The outer frame has an air and water tight, factory applied seal that bonds the frame to the glass. Before ordering, ensure that the existing glass is held in place by raised molding. The guide below provides side window and frame kit dimensions:

Replacing Glass
Side Window Material: Steel or Fiberglass
Side Window Width: 12” and 14”
Side Window Height: 6’8” and 7’0”
Side Window Thickness: 1.75”
Frame Kit Width: 10” (+/- 0.25”)
Frame Kit Height: 50” (+/- 0.25”)

Please consult the Measurement Guide for any questions on identifying the correct size door, side window or door glass frame kit for your entry system.

Typical Industry Names for the Kit
Three Quarter Side Light
