SKU: 304723

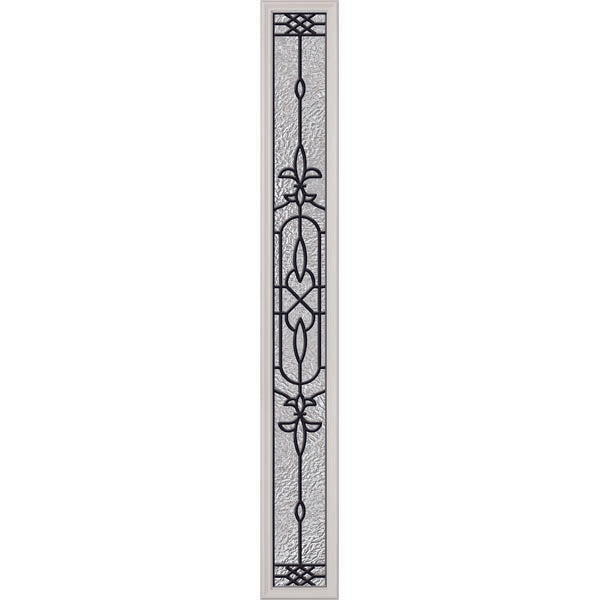

ODL Jacinto Door Glass - 9" x 66" Frame Kit

$555.46

Plastic frame width and height (outer edge). Measurement Guides

9" x 66"

Caming Color: Wrought Iron
Frame Color: Evolve High Performance Maintenance-Free White Plastic

Typically ships in 7-10 business days

Shipping calculated at checkout.

Highlights

• Handcrafted decorative glass.
• Privacy Rating of 9.
• Panels are thermally sealed for air- and water-tight performance.
• 20 year glass seal warranty.

Description

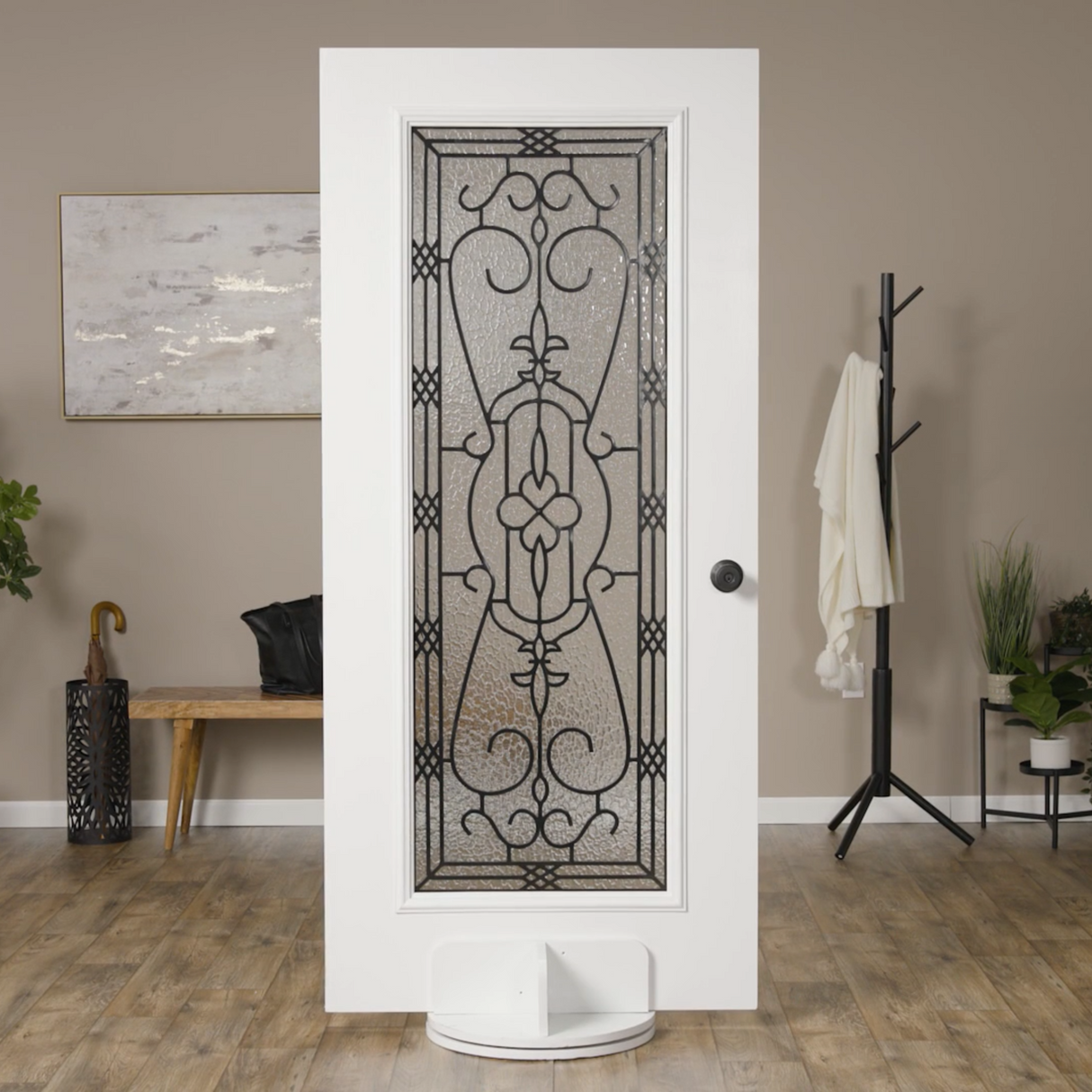

Jacinto Door Glass
Wrought iron scrolling and textured glass will add Old World charm to your home. Whether your architectural style is Spanish, Rustic, or Southwestern, Jacinto will bring an authentic design touch to your entryway. It offers a high level of privacy.

Door Glass with Frame Kit
This door glass kit is designed to fit a wide variety of exterior side windows (side lights) manufactured by Therma Tru, Masonite, Jeld-Wen, PlastPro and many others. This kit can be used to replace existing glass in a side window and contains 1 insulated glass panel, 1 door glass frame set, 1 pack of specially designed screws, and 1 pack of screw covers. The door glass frame set consists of 1 inner and 1 outer high performance, molded plastic frame. The outer frame has an air and water tight, factory applied seal that bonds the frame to the glass. Before ordering, ensure that the existing glass is held in place by raised molding. The guide below provides side window and frame kit dimensions:

Replacing Glass
Side Window Material: Steel or Fiberglass
Side Window Width: 10", 12" and 14"
Side Window Height: 6'8" and 7'0"
Side Window Thickness: 1.75"
Frame Kit Width: 9" (+/- 0.25")
Frame Kit Height: 66" (+/- 0.25")

Please consult the Measurement Guide for any questions on identifying the correct size door, side window or door glass frame kit for your entry system.

Typical Industry Names for the Kit
Full Sidelight




+ Read More

Guaranteed Fit Program

Specifications

  • Manufacturer: ODL, Inc.
  • Category: Decorative Door Glass
  • Glass Insulation: Double Pane
  • Frame Type: Evolve High Performance Plastic
  • Glass Panel Thickness: 1 Inch
  • Glass Shape: Rectangle
  • Glass Style: Old World
  • Door Cut-Out Dimensions: 8 in. x 65 in.
  • Glass Type: Decorative
  • Door Thickness: 1-3/4 in.
  • Product Weight (lbs.): 27
  • Glass Size: 7 in. x 64 in.
  • Frame Kit Size: 9 in. x 66 in.
  • Impact Resistant: No
  • Energy Efficient: No
  • Frame Light Pattern: 1 Light
  • Tempered Safety Glass: Yes
  • Privacy Rating: 9
  • STC Rating: 31
  • Warranty: 20 Year Glass Seal Warranty
  • Light Pattern: 1 Light
