SKU:
312316
ODL Jacinto Door Glass - 24" x 82" Frame Kit
$1,792.01
Unit price
/
Unavailable
24" x 82"
Typically ships in 7-10 business days
Highlights
Highlights
• Handcrafted decorative glass.
• Privacy Rating of 9.
• Panels are thermally sealed for air- and water-tight performance.
• 20 year glass seal warranty.
• Special Handling Item (large/heavy): curbside delivery fee applied at checkout. Returns subject to 20% restocking fee.
• Privacy Rating of 9.
• Panels are thermally sealed for air- and water-tight performance.
• 20 year glass seal warranty.
• Special Handling Item (large/heavy): curbside delivery fee applied at checkout. Returns subject to 20% restocking fee.
Description
Description

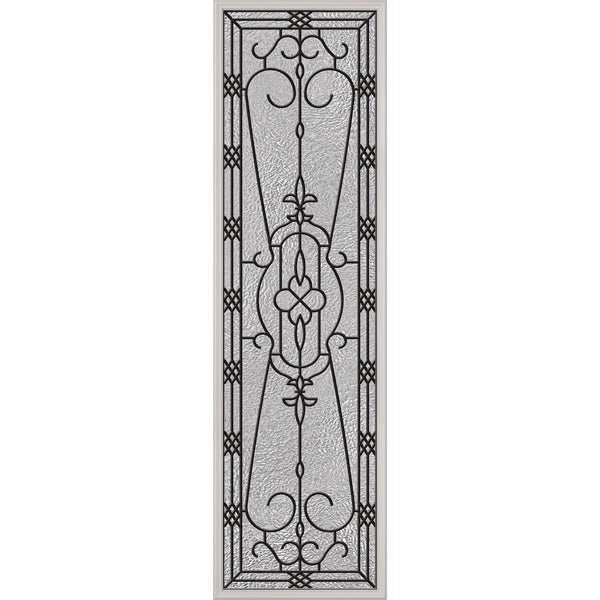

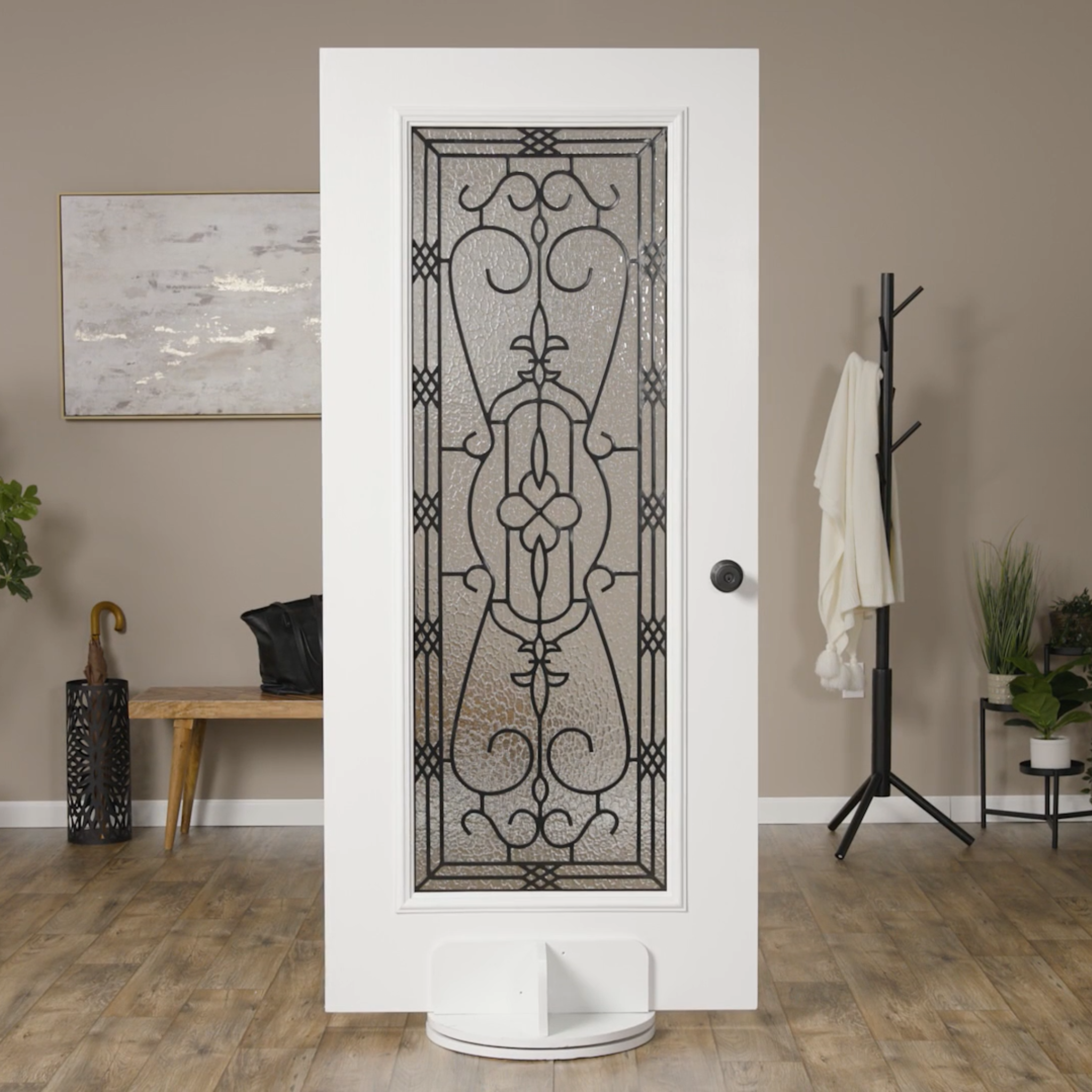

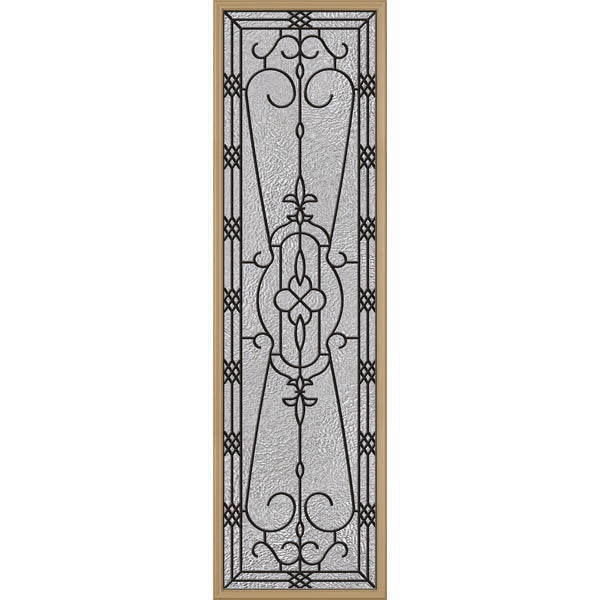

Jacinto Door Glass
Wrought iron scrolling and textured glass will add Old World charm to your home. Whether your architectural style is Spanish, Rustic, or Southwestern, Jacinto will bring an authentic design touch to your entryway. It offers a high level of privacy.
Door Glass with Frame Kit
This door glass kit is designed to fit a wide variety of exterior doors manufactured by Therma Tru, Masonite, Jeld-Wen, PlastPro and many others. This kit can be used to either replace existing glass in a door, or to add glass to a door. This kit contains 1 insulated glass panel, 1 door glass frame set, 1 pack of specially designed screws, and 1 pack of screw covers. The door glass frame set consists of 1 inner and 1 outer high performance, molded plastic frame. The outer frame has an air and water tight, factory applied seal that bonds the frame to the glass. Before ordering, ensure that the existing glass is held in place by raised molding. The guide below provides door glass and frame kit dimensions:
Replacing Glass
Door Material: Steel or Fiberglass
Door Width: 36", 34", 32" and 30" (+/- 0.75")
Door Height: 8'0" (+/- 0.75")
Door Thickness: 1.75"
Frame Kit Width: 24" (+/- 0.25")
Frame Kit Height: 82" (+/- 0.25")
Adding Glass
Door Material: Steel or Fiberglass
Door Width: 36", 34", 32" (+/- 0.75")
Door Height: 8'0" (+/- 0.75")
Door Thickness: 1.75"
Door Panel: 6 Panel Door, 12 Panel Door, 12 Panel Door, 9 Panel Door, 3 Panel Door, and Flush Door
Door Panel Width: 23" (+/- 0.5")
Door Panel Height: 81" (+/- 0.5")
Please consult the Measurement Guide for any questions on identifying the correct size door, side window or door glass frame kit for your entry system.
Typical Industry Names for the Kit
Full Light
Wrought iron scrolling and textured glass will add Old World charm to your home. Whether your architectural style is Spanish, Rustic, or Southwestern, Jacinto will bring an authentic design touch to your entryway. It offers a high level of privacy.
Door Glass with Frame Kit
This door glass kit is designed to fit a wide variety of exterior doors manufactured by Therma Tru, Masonite, Jeld-Wen, PlastPro and many others. This kit can be used to either replace existing glass in a door, or to add glass to a door. This kit contains 1 insulated glass panel, 1 door glass frame set, 1 pack of specially designed screws, and 1 pack of screw covers. The door glass frame set consists of 1 inner and 1 outer high performance, molded plastic frame. The outer frame has an air and water tight, factory applied seal that bonds the frame to the glass. Before ordering, ensure that the existing glass is held in place by raised molding. The guide below provides door glass and frame kit dimensions:
Replacing Glass
Door Material: Steel or Fiberglass
Door Width: 36", 34", 32" and 30" (+/- 0.75")
Door Height: 8'0" (+/- 0.75")
Door Thickness: 1.75"
Frame Kit Width: 24" (+/- 0.25")
Frame Kit Height: 82" (+/- 0.25")
Adding Glass
Door Material: Steel or Fiberglass
Door Width: 36", 34", 32" (+/- 0.75")
Door Height: 8'0" (+/- 0.75")
Door Thickness: 1.75"
Door Panel: 6 Panel Door, 12 Panel Door, 12 Panel Door, 9 Panel Door, 3 Panel Door, and Flush Door
Door Panel Width: 23" (+/- 0.5")
Door Panel Height: 81" (+/- 0.5")
Please consult the Measurement Guide for any questions on identifying the correct size door, side window or door glass frame kit for your entry system.
Typical Industry Names for the Kit
Full Light
+ Read More
Guaranteed Fit Program
Guaranteed Fit Program
In a perfect world, everything fits right – the first time. You can achieve this enlightened state of mind with Zabitat’s Risk-Free Fit Guarantee. Submit the requested information and a photo or two of your application (front door, slider, etc.). Our trained experts will review your submission within 1 business day. If everything is copacetic, you will receive a verification for fit. If your product selection won’t work with your application, you will receive a response with new product recommendations or other options.
Moral of the story is, "Measure twice, order once!". In the rare event that a Zabitat expert gets it wrong you are guaranteed a full refund or an exchange if the proper size unit is available, and return shipping fees are on us. *Please note, we are unable to guarantee a fit for arch (rounded) glass.
Specifications
Specifications
- Manufacturer: ODL, Inc.
- Category: Decorative Door Glass
- Glass Insulation: Double Pane
- Frame Type: Evolve High Performance Plastic
- Glass Panel Thickness: 1 Inch
- Glass Shape: Rectangle
- Glass Style: Old World
- Door Cut-Out Dimensions: 23 in. x 81 in.
- Glass Type: Decorative
- Door Thickness: 1-3/4 in.
- Product Weight (lbs.): 77
- Glass Size: 22 in. x 80 in.
- Frame Kit Size: 24 in. x 82 in.
- Impact Resistant: No
- Energy Efficient: No
- Frame Light Pattern: 1 Light
- Tempered Safety Glass: Yes
- Privacy Rating: 9
- STC Rating: 31
- Warranty: 20 Year Glass Seal Warranty
- Light Pattern: 1 Light
