SKU: 313481

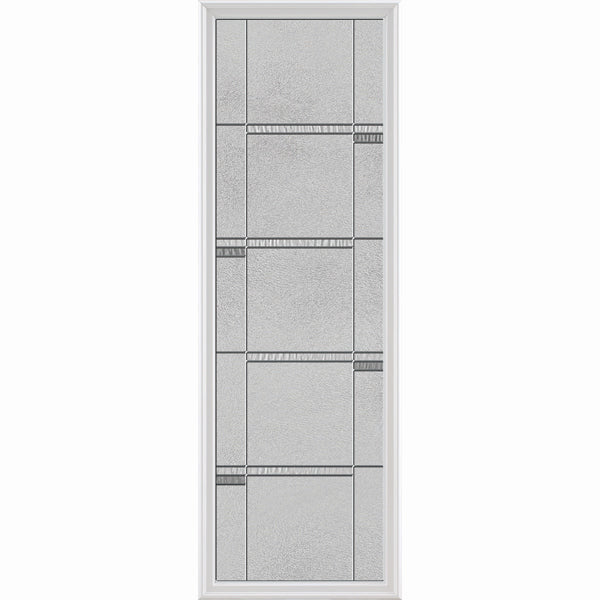

ODL Impact Resistant Door Glass - Crosswalk - 22" x 66" Frame Kit

$1,779.01

Plastic frame width and height (outer edge). Measurement Guides

22" x 66"

Caming Color: Nickel
Frame Color: White Aluminum

Typically ships in 7-10 business days

Shipping calculated at checkout.

Highlights

• Handcrafted decorative glass.
• Linear lines with bold pops of gray glass.
• Glass Privacy Level Rating: 8
• Impact resistant glass designed for strength in severe weather conditions.
• Door Glass Panels are thermally sealed for air tight and water tight performance.
• 20 year glass seal warranty.

Description

ODL Destinations Crosswalk Door Glass
Destinations door glass for entry doors makes coming home just a little nicer. Home is the place you want to be, your favorite destination.
Crosswalk is a modern design providing your front entry with a modern, strong, and stylish linear design with pops of gray glass. Crosswalk offers a high level of privacy to your front door or entryway.

Door Glass with Frame Kit
This door glass kit is designed to fit a wide variety of exterior doors manufactured by Therma Tru, Masonite, Jeld-Wen, PlastPro and many others. This kit can be used to either replace existing glass in a door, or to add glass to a door. This kit contains 1 insulated glass panel, 1 door glass frame set, 1 pack of specially designed screws, and 1 pack of screw covers. The door glass frame set consists of 1 inner and 1 outer powder coated aluminum frame. The outer frame has an air and water tight, factory applied seal that bonds the frame to the glass. Before ordering, ensure that the existing glass is held in place by raised molding. The guide below provides door glass and frame kit dimensions:

Replacing Glass
Door Material: Steel or Fiberglass
Door Width: 36", 34", 32" and 30" (+/- 0.75")
Door Height: 6'8" and 7'0" (+/- 0.75")
Door Thickness: 1.75"
Frame Kit Width: 22" (+/- 0.25")
Frame Kit Height: 66" (+/- 0.25")

Adding Glass
Door Material: Steel or Fiberglass
Door Width: 30" (+/- 0.75")
Door Height: 6'8" and 7'0" (+/- 0.75")
Door Thickness: 1.75"
Door Panel: 6 Panel Door, 8 Panel Door, 3 Panel Door, 12 Panel Door and Flush Door
Door Panel Width: 21" (+/- 0.5")
Door Panel Height: 65" (+/- 0.5")

Please consult the Measurement Guide for any questions on identifying the correct size door, side window or door glass frame kit for your entry system.

Typical Industry Names for the Kit
Full View, Full Light




+ Read More

Guaranteed Fit Program

Guaranteed Fit Program

In a perfect world, everything fits right – the first time. You can achieve this enlightened state of mind with Zabitat’s Risk-Free Fit Guarantee. Submit the requested information and a photo or two of your application (front door, slider, etc.). Our trained experts will review your submission within 1 business day. If everything is copacetic, you will receive a verification for fit. If your product selection won’t work with your application, you will receive a response with new product recommendations or other options.

Moral of the story is, "Measure twice, order once!". In the rare event that a Zabitat expert gets it wrong you are guaranteed a full refund or an exchange if the proper size unit is available, and return shipping fees are on us. *Please note, we are unable to guarantee a fit for arch (rounded) glass.

Specifications

  • Category: Severe Weather Door Glass
  • Door Cut-Out Dimensions: 21 in. x 65 in.
  • Energy Efficient: Yes
  • Frame Kit Size: 22 in. x 66 in.
  • Frame Light Pattern: 1 Light
  • Frame Type: Severe Weather Aluminum
  • Glass Insulation: Triple Pane
  • Glass Panel Thickness: 1 Inch
  • Glass Size: 20 in. x 64 in.
  • Impact Resistant: Yes
  • Manufacturer: ODL, Inc.
  • Privacy Rating: 8
  • Product Weight (lbs.): 84
  • Tempered Safety Glass: Yes
  • Warranty: 20 Year Glass Seal Warranty
  • Glass Style: Contemporary
