SKU:
313361

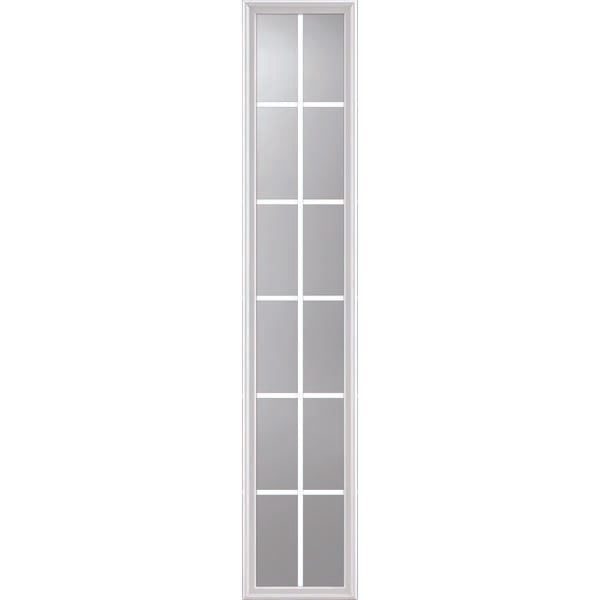

ODL Impact Resistant 12 Light - 5/8 Internal Grille Low-E Door Glass - 16" x 82" Frame Kit
$1,206.24
Unit price
/
Unavailable
16" x 82"
Built to order in 2-4 weeks
Highlights
Highlights
• Tired of cleaning door glass with small individual panes? Save time with internal muntins with a single continuous surface and no exposed grilles to gather dust and dirt.
• Designed for security, engineered for strength.
• Sealed between impact-resistant laminated glass on the exterior and tempered safety glass on the interior.
• Energy Efficient Low-E glass.
• 5/8 in. internal grille.
• Special Handling Item (large/heavy): curbside delivery fee applied at checkout. Returns subject to 20% restocking fee.
• Designed for security, engineered for strength.
• Sealed between impact-resistant laminated glass on the exterior and tempered safety glass on the interior.
• Energy Efficient Low-E glass.
• 5/8 in. internal grille.
• Special Handling Item (large/heavy): curbside delivery fee applied at checkout. Returns subject to 20% restocking fee.
Description
Description
Impact Resistant Door Glass with Grilles
Our maintenance-free, 5/8 internal grille selection with impact-resistant glass is pressure tested and offers a hurricane impact frame, thermal sealing, and a level of noise suppression. Low-E glass options make clear doorglass an energy efficient choice, as well.
Door Glass with Frame Kit
This door glass kit is designed to fit a wide variety of exterior doors manufactured by Therma Tru, Masonite, Jeld-Wen, PlastPro and many others. This kit can be used to either replace existing glass in a door, or to add glass to a door. This kit contains 1 insulated glass panel, 1 door glass frame set, 1 pack of specially designed screws, and 1 pack of screw covers. The door glass frame set consists of 1 inner and 1 outer powder coated aluminum frame. The outer frame has an air and water tight, factory applied seal that bonds the frame to the glass. Before ordering, ensure that the existing glass is held in place by raised molding. The guide below provides door glass and frame kit dimensions:
Replacing Glass
Door Material: Steel or Fiberglass
Door Width: 24” (+/- 0.75”)
Door Height: 8’0” (+/- 0.75”)
Door Thickness: 1.75”
Frame Kit Width: 16” (+/- 0.25”)
Frame Kit Height: 82” (+/- 0.25”)
Adding Glass
Door Material: Steel or Fiberglass
Door Width: 24” (+/- 0.75”)
Door Height: 8’0” (+/- 0.75”)
Door Thickness: 1.75”
Door Panel: Flush Door
Please consult the Measurement Guide for any questions on identifying the correct size door, side window or door glass frame kit for your entry system.
Typical Industry Names for the Kit
Full Doorlight
Our maintenance-free, 5/8 internal grille selection with impact-resistant glass is pressure tested and offers a hurricane impact frame, thermal sealing, and a level of noise suppression. Low-E glass options make clear doorglass an energy efficient choice, as well.
Door Glass with Frame Kit
This door glass kit is designed to fit a wide variety of exterior doors manufactured by Therma Tru, Masonite, Jeld-Wen, PlastPro and many others. This kit can be used to either replace existing glass in a door, or to add glass to a door. This kit contains 1 insulated glass panel, 1 door glass frame set, 1 pack of specially designed screws, and 1 pack of screw covers. The door glass frame set consists of 1 inner and 1 outer powder coated aluminum frame. The outer frame has an air and water tight, factory applied seal that bonds the frame to the glass. Before ordering, ensure that the existing glass is held in place by raised molding. The guide below provides door glass and frame kit dimensions:
Replacing Glass
Door Material: Steel or Fiberglass
Door Width: 24” (+/- 0.75”)
Door Height: 8’0” (+/- 0.75”)
Door Thickness: 1.75”
Frame Kit Width: 16” (+/- 0.25”)
Frame Kit Height: 82” (+/- 0.25”)
Adding Glass
Door Material: Steel or Fiberglass
Door Width: 24” (+/- 0.75”)
Door Height: 8’0” (+/- 0.75”)
Door Thickness: 1.75”
Door Panel: Flush Door
Please consult the Measurement Guide for any questions on identifying the correct size door, side window or door glass frame kit for your entry system.
Typical Industry Names for the Kit
Full Doorlight
+ Read More
Guaranteed Fit Program
Guaranteed Fit Program
In a perfect world, everything fits right – the first time. You can achieve this enlightened state of mind with Zabitat’s Risk-Free Fit Guarantee. Submit the requested information and a photo or two of your application (front door, slider, etc.). Our trained experts will review your submission within 1 business day. If everything is copacetic, you will receive a verification for fit. If your product selection won’t work with your application, you will receive a response with new product recommendations or other options.
Moral of the story is, "Measure twice, order once!". In the rare event that a Zabitat expert gets it wrong you are guaranteed a full refund or an exchange if the proper size unit is available, and return shipping fees are on us. *Please note, we are unable to guarantee a fit for arch (rounded) glass.
Specifications
Specifications
- Frame Type: Severe Weather Aluminum
- Manufacturer: ODL, Inc.
- Category: Severe Weather Door Glass
- Glass Panel Thickness: 1 Inch
- Grille Size: 5/8"
- Grille Type: Standard
- Glass Shape: Rectangle
- Glass Insulation: Double Pane
- Glass Type: Impact Resistant
- Door Cut-Out Dimensions: 15 in. x 81 in.
- Glass Size: 14 in. x 80 in.
- Door Thickness: 1-3/4 in.
- Frame Kit Size: 16 in. x 82 in.
- Energy Efficient: Yes
- Impact Resistant: Yes
- Frame Light Pattern: 1 Light
- Tempered Safety Glass: Yes
- STC Rating: 37
- Privacy Rating: 1
- Product Weight (lbs.): 56.5
- Light Pattern: 12 Light
