SKU: 309640

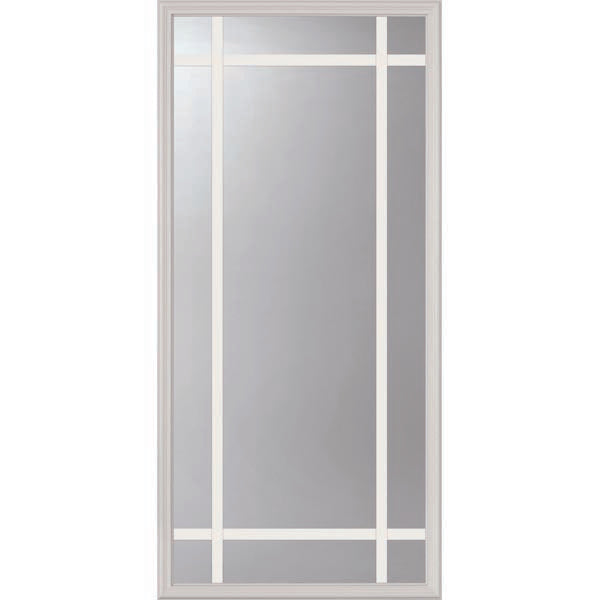

ODL Clear Door Glass - 9 Light - 5/8 Prairie Internal Grille - 24" x 50" Frame Kit

$351.76

Plastic frame width and height (outer edge). Measurement Guides

24" x 50"

Grille Color: White Grilles
Frame Color: Evolve High Performance Maintenance-Free White Plastic

Typically ships in 7-10 business days

Shipping calculated at checkout.

Highlights

• Tired of cleaning door glass with small individual panes? Save time with internal muntins with a single continuous surface and no exposed grilles to gather dust and dirt.
• Perfect for side entry and back patio doors.
• Thermally sealed, air and water tight tempered safety glass.
• 5/8 in. prairie style internal grille.

Description

Clear Door Glass with Prairie Style Grilles
You are sure to find a style that works for your entry door from our maintenance-free, 5/8 Prairie Style internal grille selection with clear glass. Finish choices are also offered.

Door Glass with Frame Kit
This door glass kit is designed to fit a wide variety of exterior doors manufactured by Therma Tru, Masonite, Jeld-Wen, PlastPro and many others. This kit can be used to either replace existing glass in a door, or to add glass to a door. This kit contains 1 insulated glass panel, 1 door glass frame set, 1 pack of specially designed screws, and 1 pack of screw covers. The door glass frame set consists of 1 inner and 1 outer high performance, molded plastic ODL Evolve Frame. The outer frame has an air and water tight, factory applied seal that bonds the frame to the glass. Before ordering, ensure that the existing glass is held in place by raised molding. The guide below provides side window and frame kit dimensions:

Replacing Glass
Door Material: Steel or Fiberglass
Door Width: 36", 34", 32" and 30" (+/- 0.75")
Door Height**: 6'8" and 7'0" (+/- 0.75")
Door Thickness: 1.75"
Frame Kit Width: 24" (+/- 0.25")
Frame Kit Height: 50" (+/- 0.25")
**This kit will work for an 8'0" door with an existing frame measuring 24"x 50".


Adding Glass
Door Material: Steel or Fiberglass
Door Width: 36", 34", 32" (+/- 0.75")
Door Height*: 6'8" and 7'0" (+/- 0.75")
Door Thickness: 1.75"
Door Panel: 8 Panel Door, 3 Panel door and 2 Panel Door
Door Panel Width: 23" (+/- 0.5")
Door Panel Height: 49" (+/- 0.5")
*This kit will work with a 6 panel, 8'0" door for adding glass.

Please consult the Measurement Guide for any questions on identifying the correct size door, side window or door glass frame kit for your entry system.

Typical Industry Names for the Kit
Three Quarter Light (6'8" doors)
Half Light (8'0" doors)


+ Read More

Guaranteed Fit Program

Specifications
