SKU: 313018

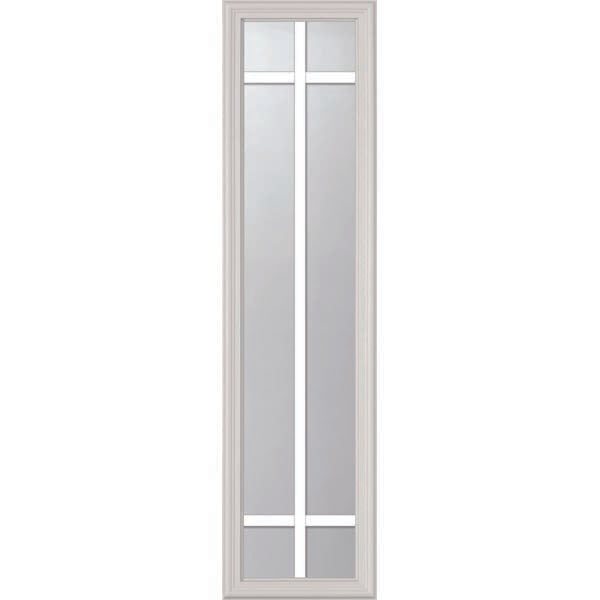

ODL Clear Door Glass - 6 Light - 5/8 Prairie Internal Grille - 10" x 38" Frame Kit

$146.21

Plastic frame width and height (outer edge). Measurement Guides

10" x 38"

Grille Color: White Grilles
Frame Color: Evolve High Performance Maintenance-Free White Plastic

Typically ships in 7-10 business days

Shipping calculated at checkout.

Highlights

• Tired of cleaning door glass with small individual panes? Save time with internal muntins with a single continuous surface and no exposed grilles to gather dust and dirt.
• Perfect for side entry and back patio doors.
• Thermally sealed, air and water tight tempered safety glass.
• 5/8 in. prairie style internal grille.

Description

Clear Door Glass with Prairie Style Grilles
You are sure to find a style that works for your entry door from our maintenance-free, 5/8 Prairie Style internal grille selection with clear glass. Finish choices are also offered.

Door Glass with Frame Kit
This door glass kit is designed to fit a wide variety of exterior side windows (side lights) manufactured by Therma Tru, Masonite, Jeld-Wen, PlastPro and many others. This kit can be used to replace existing glass in a side window and contains 1 insulated glass panel, 1 door glass frame set, 1 pack of specially designed screws, and 1 pack of screw covers. The door glass frame set consists of 1 inner and 1 outer high performance, molded plastic frame. The outer frame has an air and water tight, factory applied seal that bonds the frame to the glass. Before ordering, ensure that the existing glass is held in place by raised molding. The guide below provides side window and frame kit dimensions:

Replacing Glass
Side Window Material: Steel or Fiberglass
Side Window Width: 12" and 14"
Side Window Height: 6'8" and 7'0"
Side Window Thickness: 1.75"
Frame Kit Width: 10" (+/- 0.25")
Frame Kit Height: 38" (+/- 0.25"

Adding Glass
Door Material: Steel or Fiberglass
Door Width: 36", 34", 32" (+/- 0.75")
Door Height: 6'8", 7'0" (+/- 0.75")
Door Thickness: 1.75"
Door Panel: 6 Panel Door
Door Panel Width: 9" (+/- 0.5")
Door Panel Height: 37" (+/- 0.5")
*This kit will work with a 6 panel, 8'0" door for adding glass.

Please consult the Measurement Guide for any questions on identifying the correct size door, side window or door glass frame kit for your entry system.

Typical Industry Names for the Kit
Half Side Light
Twin Light




+ Read More

Guaranteed Fit Program


In a perfect world, everything fits right – the first time. You can achieve this enlightened state of mind with Zabitat’s Risk-Free Fit Guarantee. Submit the requested information and a photo or two of your application (front door, slider, etc.). Our trained experts will review your submission within 1 business day. If everything is copacetic, you will receive a verification for fit. If your product selection won’t work with your application, you will receive a response with new product recommendations or other options.

Moral of the story is, "Measure twice, order once!". In the rare event that a Zabitat expert gets it wrong you are guaranteed a full refund or an exchange if the proper size unit is available, and return shipping fees are on us. *Please note, we are unable to guarantee a fit for arch (rounded) glass.

Specifications

  • Frame Type: Evolve High Performance Plastic
  • Manufacturer: ODL, Inc.
  • Category: Clear Door Glass
  • Grille Size: 5/8"
  • Grille Type: Prairie Style
  • Glass Insulation: Double Pane
  • Glass Type: Clear Glass
  • Door Cut-Out Dimensions: 9 in. x 37 in.
  • Glass Size: 8 in. x 36 in.
  • Door Thickness: 1-3/4 in.
  • Frame Kit Size: 10 in. x 38 in.
  • Energy Efficient: No
  • Impact Resistant: No
  • Frame Light Pattern: 1 Light
  • Tempered Safety Glass: Yes
  • STC Rating: 28
  • Privacy Rating: 1
  • Glass Panel Thickness: 1 Inch
  • Product Weight (lbs.): 11
  • Light Pattern: 6 Light
  • Glass Shape: Rectangle
