SKU: 310156

ODL Simulated Divided 3 Light Low-E Door Glass - Blanca - 24" x 17.25" Craftsman Frame Kit

$342.44

Plastic frame width and height (outer edge). Measurement Guides

24" x 17"

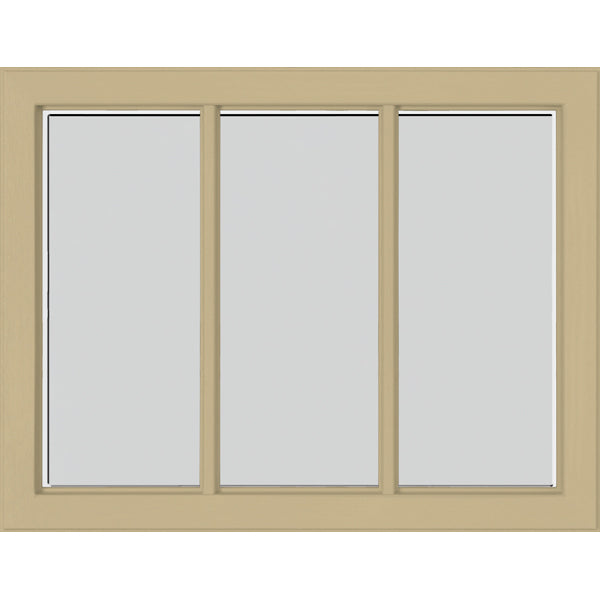

Frame Color: Craftsman Premium Paint and Stain-Ready Tan Plastic

Typically ships in 7-10 business days

Shipping calculated at checkout.

Highlights

• Glass Privacy Level Rating: 9
• Frosted, slightly stippled surface.
• Energy Efficient Low-E Glass.
• Door Glass Panels are thermally sealed for air tight and water tight performance.
• 20 year glass seal warranty.

Description

ODL Perspectives Blanca Privacy Door Glass
Blanca Door Glass is a type of privacy glass that has a frosted, slightly stippled surface. The glass offers a high level of privacy for your front door or entryway.

Door Glass with Frame Kit
This door glass kit is designed to fit a wide variety of exterior doors manufactured by Therma Tru, Masonite, Jeld-Wen, PlastPro and many others. This kit can be used to either replace existing glass in a door, or to add glass to a door. This kit contains 1 insulated glass panel, 1 door glass frame set, 1 pack of specially designed screws, and 1 pack of screw covers. The door glass frame set consists of 1 inner and 1 outer high performance, molded plastic ODL Craftsman Frame. The outer frame has an air and water tight, factory applied seal that bonds the frame to the glass. Before ordering, ensure that the existing glass is held in place by raised molding. The guide below provides door glass and frame kit dimensions:

Replacing Glass
Door Material: Steel or Fiberglass
Door Width: 36", 34", 32" and 30" (+/- 0.75")
Door Height: 6'8" and 7'0" (+/- 0.75")
Door Thickness: 1.75"
Frame Kit Width: 24" (+/- 0.25")
Frame Kit Height: 17.25" (+/- 0.25")

Adding Glass
Door Material: Steel or Fiberglass
Door Width: 36", 34", 32" (+/- 0.75")
Door Height: 6'8" and 7'0" (+/- 0.75")
Door Thickness: 1.75"
Door Panel: 3 Panel Door and 4 Panel Door
Door Panel Width: 16.25" (+/- 0.5")
Door Panel Height: 23" (+/- 0.5")

Please consult the Measurement Guide for any questions on identifying the correct size door, side window or door glass frame kit for your entry system.

Typical Industry Names for the Kit
Craftsman Door Light
+ Read More

Guaranteed Fit Program

Specifications
