SKU: 33006441

ODL Grace Door Glass - 24" x 38" Flat Profile Frame Kit

$497.28

Plastic frame width and height (outer edge). Measurement Guides

24" x 38"

Caming Color: Nickel
Frame Color: Flat Profile Maintenance Free White Plastic

Typically ships in 7-10 business days

Shipping calculated at checkout.

Highlights

• Our new modern flat frame provides a clean low-profile look.
• Our screw-together flat frames combine a modern flat profile sleek look with the ease of installation and repairability of traditional screw together frames. Includes screws and screw covers (caps or plugs).
• Handcrafted decorative glass.
• Privacy Rating of 7.
• Panels are thermally sealed for air- and water-tight performance.
• 20 year glass seal warranty.

Description

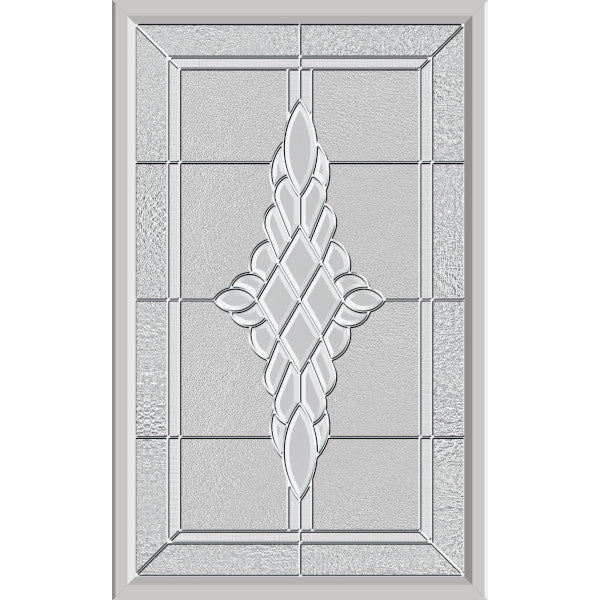

Grace Door Glass
Accent your front door with the graceful styling of a bevel cluster. The Classic look of Grace includes a backdrop of glass textures and nickel finish. Grace offers a medium-high level of privacy.

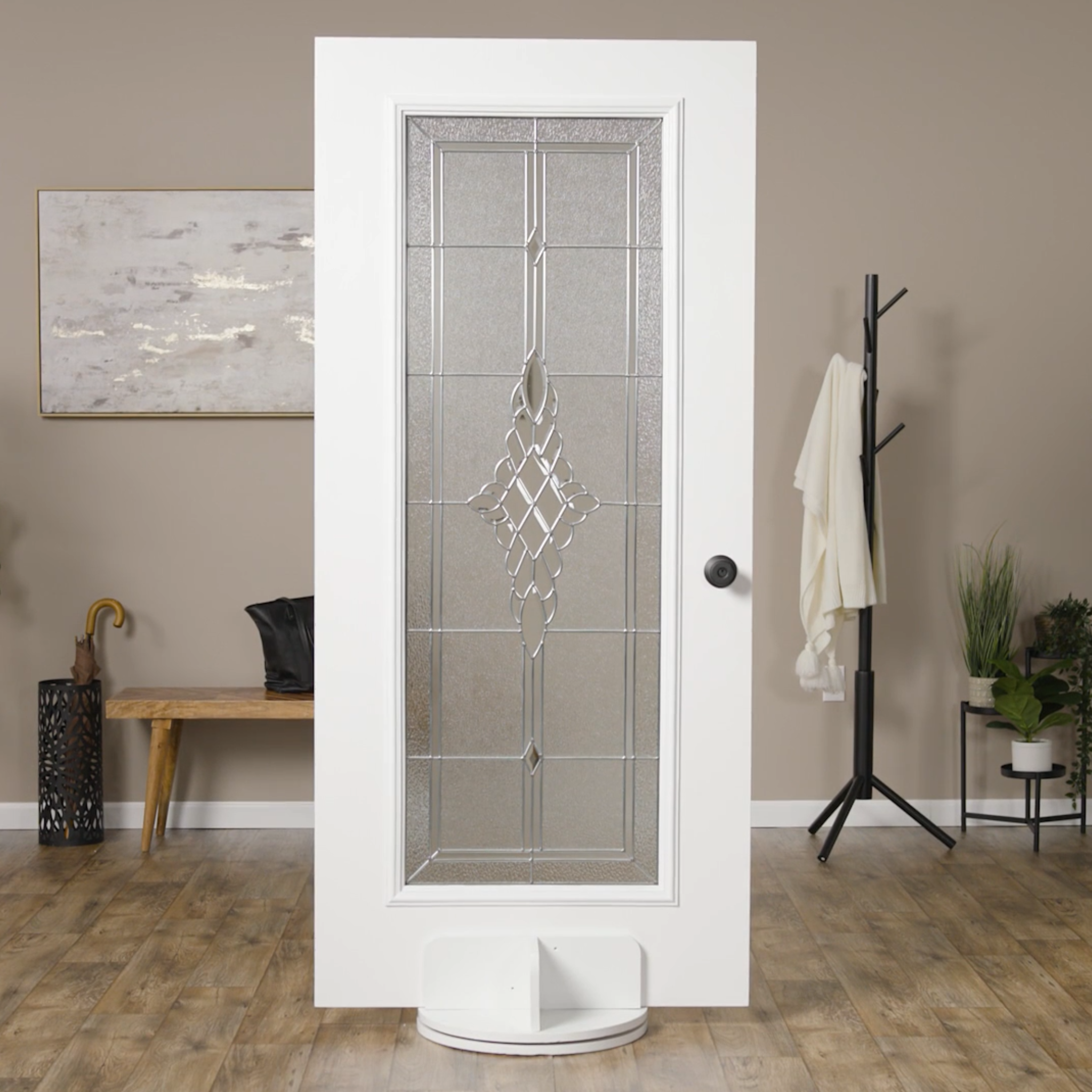

Door Glass with Frame Kit
This door glass kit is designed to fit a wide variety of exterior doors manufactured by Therma Tru, Masonite, Jeld-Wen, PlastPro and many others. This kit can be used to either replace existing glass in a door, or to add glass to a door. This kit contains 1 insulated glass panel and 1 door glass frame set. The door glass frame set consists of 1 inner and 1 outer high performance, molded plastic frame. The outer frame has an air and water tight, factory applied seal that bonds the frame to the glass. Before ordering, ensure that the existing glass is held in place by raised molding. The guide below provides door glass and frame kit dimensions:

Replacing Glass
Door Material: Steel or Fiberglass
Door Width: 36", 34", 32" and 30" (+/- 0.75")
Door Height: 6'8" and 7'0" (+/- 0.75")
Door Thickness: 1.75"
Frame Kit Width: 24" (+/- 0.25")
Frame Kit Height: 38" (+/- 0.25")

Adding Glass
Door Material: Steel or Fiberglass
Door Width: 36", 34", 32" (+/- 0.75")
Door Height: 6'8" and 7'0" (+/- 0.75")
Door Thickness: 1.75"
Door Panel: 6 Panel Door and 4 Panel Door
Door Panel Width: 23" (+/- 0.5")
Door Panel Height: 37" (+/- 0.5")

Please consult the Measurement Guide for any questions on identifying the correct size door, side window or door glass frame kit for your entry system.

Typical Industry Names for the Kit
Half Light




+ Read More

Guaranteed Fit Program

Guaranteed Fit Program

In a perfect world, everything fits right – the first time. You can achieve this enlightened state of mind with Zabitat’s Risk-Free Fit Guarantee. Submit the requested information and a photo or two of your application (front door, slider, etc.). Our trained experts will review your submission within 1 business day. If everything is copacetic, you will receive a verification for fit. If your product selection won’t work with your application, you will receive a response with new product recommendations or other options.

Moral of the story is, "Measure twice, order once!". In the rare event that a Zabitat expert gets it wrong you are guaranteed a full refund or an exchange if the proper size unit is available, and return shipping fees are on us. *Please note, we are unable to guarantee a fit for arch (rounded) glass.

Specifications

  • Door Cut-Out Dimensions: 23 in. x 37 in.
  • Frame Type: Flat-Profile Plastic
  • Glass Type: Decorative
  • Warranty: 20 Year Glass Seal Warranty
  • Product Weight (lbs.): 35
  • Category: Decorative Door Glass
  • Door Thickness: 1-3/4 in.
  • Frame Light Pattern: 1 Light
  • Glass Insulation: Triple Pane
  • Glass Panel Thickness: 1 Inch
  • Glass Shape: Rectangle
  • Light Pattern: 1 Light
  • Manufacturer: ODL, Inc.
  • Energy Efficient: No
  • Glass Size: 22 in. x 36 in.
  • Glass Style: Classic
  • Frame Kit Size: 24 in. x 38 in.
  • STC Rating: 31
  • Privacy Rating: 7
  • Impact Resistant: No
  • Tempered Safety Glass: Yes
