SKU: F2438N2

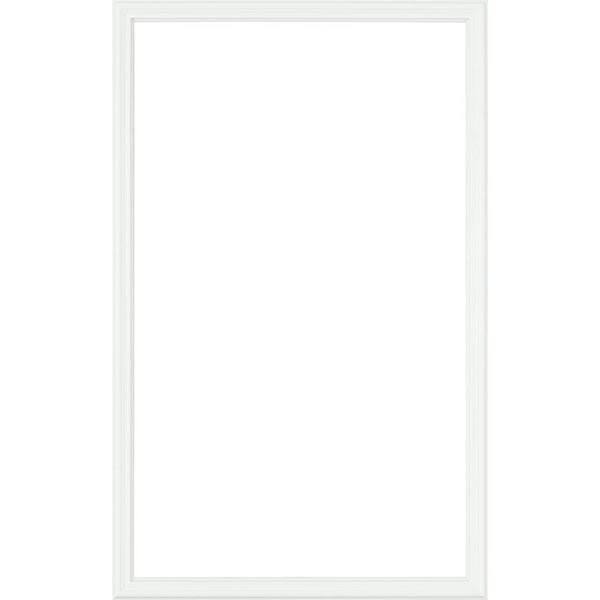

Half Lite Replacement Frame Set (glass not included)

Regular price $103.82

Plastic frame width and height (outer edge). Measurement Guides

Frame Size
Frame Type
Frame Color: High Performance Maintenance-Free White Plastic
Shipping calculated at checkout.

Description

• Textured, maintenance free plastic
• Will not yellow from heat or sun
• 24" width frame typically fits door slabs at least 32" wide, narrower doors usually need the 22" width frame
• Includes 1 piece molded outer frame (pre-caulked) and 1 piece molded inner frame
• Select for use with installed 1/2" or 1" thick door glass

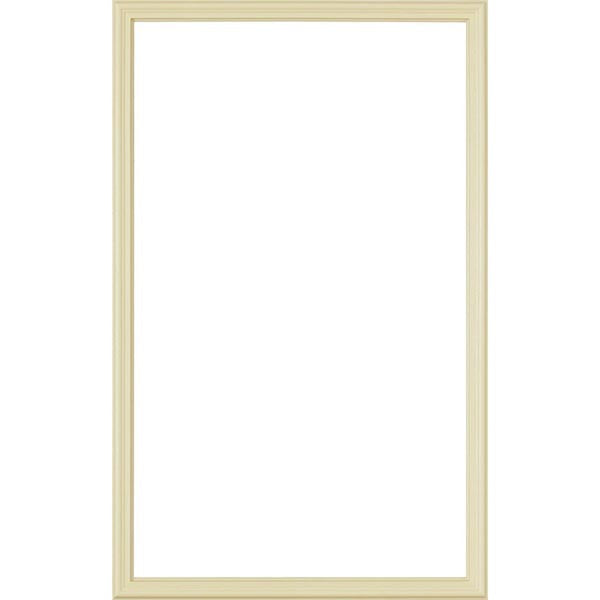

• Available in white and tan (recommended if you are going to stain your frames) - both colors are paintable
• Modern flat profile available (for 1" thick glass and white frames only)
• For use with door thickness of 1-3/4"
Replacement Frame Set
If you still love the look of your existing door glass, but need to replace the frame, we're happy to offer replacement frames. Each replacement frame set contains 1 inner and 1 outer high performance, molded plastic frame, 1 pack of specially designed screws and 1 pack of screw covers. Before ordering, ensure that the existing glass is held in place by raised molding. The guide below provides frame set dimensions:

Replacing Frame Set
Door Material: Steel or Fiberglass
Door Width: 36", 34", 32" and 30" (+/- 0.75")
Door Height: 6'8" and 7'0" (+/- 0.75")
Door Thickness: 1.75"
Frame Kit Width: 24" (+/- 0.25")
Frame Kit Height: 38" (+/- 0.25")

Please consult the Measurement Guide for any questions on identifying the correct size door, side window or door glass frame kit for your entry system.
Highlights

• Textured, maintenance free plastic.
• Will not yellow from heat or sun.
• Pre-caulked for easy installation.
• 20 year ltd. warranty.

Specifications

  • Frame Kit Size
    24" x 38", 22" x 38"
  • Frame Type
    High Performance Plastic
  • Frame Light Pattern
    1 Light
  • Door Cut-Out Dimensions
    23 in. x 37 in., 21 in. x 37 in.
  • Door Thickness
    1-3/4 in.
  • Glass Size
    22" x 36", 20" x 36"
  • Glass Panel Thickness
    select to fit 1/2 or 1 Inch
  • Glass Shape
    Rectangle
  • Impact Resistant
    No
  • Product Weight (lbs.)
    7
  • Category
    Rectangle
  • Manufacturer
    Novatech (RSL) or ODL, Inc.
  • Warranty
    20 Year Limited Warranty

Guaranteed Fit Program

Guaranteed Fit Program

In a perfect world, everything fits right the first time. You can achieve this enlightened state of mind with Zabitat's Risk-Free Fit Guarantee. Submit the requested information and a photo or two of your application (front door, slider, etc.). Our trained experts will review your submission within 1 business day. If everything is copacetic, you will receive a verification for fit. If your product selection won't work with your application, you will receive a response with new product recommendations or other options.

Moral of the story is, "Measure twice, order once!". In the rare event that a Zabitat expert gets it wrong you are guaranteed a full refund or an exchange if the proper size unit is available, and return shipping fees are on us. *Please note, we are unable to guarantee a fit for arch (rounded) glass.
