SKU: 309337

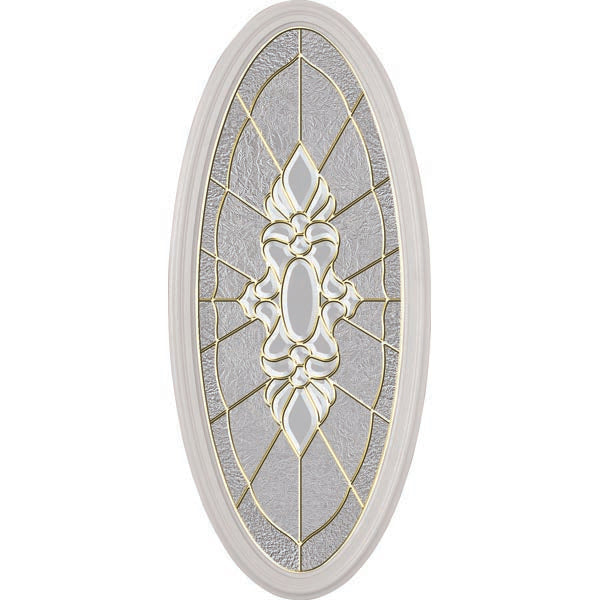

ODL Heirlooms Door Glass - 18" x 41.9" Frame Kit

$784.53

Plastic frame width and height (outer edge). Measurement Guides

18" x 42"

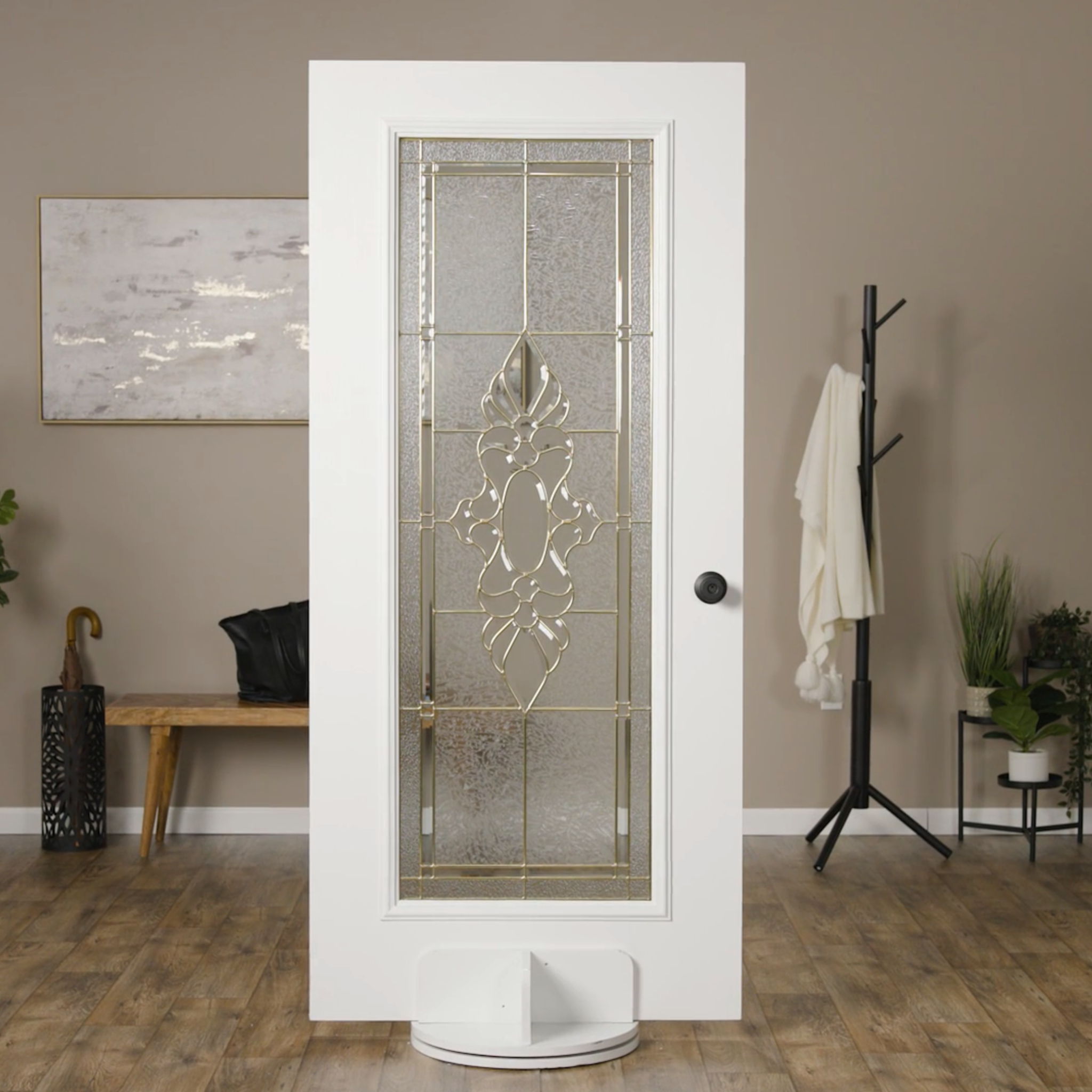

Caming Color: Brass
Frame Color: Evolve High Performance Maintenance-Free White Plastic

Typically ships in 7-10 business days

Shipping calculated at checkout.

Highlights

• Handcrafted decorative glass.
• Privacy Rating of 6.
• Panels are thermally sealed for air- and water-tight performance.
• 20 year glass seal warranty.

Description

Heirlooms Door Glass
The value you place on history makes Heirlooms your perfect choice. Its deeply cut bevels create a Classic design that endures, just like the family treasures that lie within your home. Heirloom offers a medium privacy level.

Door Glass with Frame Kit
This door glass kit is designed to fit a wide variety of exterior side windows (side lights) manufactured by Therma Tru, Masonite, Jeld-Wen, PlastPro and many others. This kit can be used to replace existing glass in a side window and contains 1 insulated glass panel, 1 door glass frame set, 1 pack of specially designed screws, and 1 pack of screw covers. The door glass frame set consists of 1 inner and 1 outer high performance, molded plastic frame. The outer frame has an air and water tight, factory applied seal that bonds the frame to the glass. Before ordering, ensure that the existing glass is held in place by raised molding. The guide below provides side window and frame kit dimensions:

Replacing Glass
Door Material: Steel or Fiberglass
Door Width: 36”, 34”, 32” (+/- 0.75”)
Door Height: 6’8” and 7’0” (+/- 0.75”)
Door Thickness: 1.75”
Frame Kit Width: 18” (+/- 0.25”)
Frame Kit Height: 41.9” (+/- 0.25”)

Please consult the Measurement Guide for any questions on identifying the correct size door, side window or door glass frame kit for your entry system.

Typical Industry Names for the Kit
Small/Medium Oval, Three Quarter Oval
+ Read More

Guaranteed Fit Program


This product is not currently eligible for the Guaranteed Fit Program.


Specifications

  • Manufacturer: ODL, Inc.
  • Category: Decorative Door Glass
  • Frame Type: Evolve High Performance Plastic
  • Glass Panel Thickness: 1 Inch
  • Glass Shape: Medium Oval
  • Glass Insulation: Triple Pane
  • Glass Style: Classic
  • Door Cut-Out Dimensions: 16.514 in. x 40.389 in.
  • Glass Type: Decorative
  • Door Thickness: 1-3/4 in.
  • Product Weight (lbs.): 20
  • Glass Size: 15.514 in. x 39.389 in.
  • Frame Kit Size: 18 in. x 41.9 in.
  • Impact Resistant: No
  • Energy Efficient: No
  • Frame Light Pattern: 1 Light
  • Tempered Safety Glass: Yes
  • Privacy Rating: 6
  • STC Rating: 31
  • Warranty: 20 Year Glass Seal Warranty
  • Light Pattern: 1 Light
