SKU: 33007302

ODL Clear Door Glass - 24" x 66" Flat Profile Frame Kit

$272.86

Plastic frame width and height (outer edge). Measurement Guides

24" x 66"

Frame Color: Flat Profile Maintenance Free White Plastic
Shipping calculated at checkout.

Highlights

• Our new modern flat frame provides a clean low-profile look.
• Our screw-together flat frames combine a modern flat profile sleek look with the ease of installation and repairability of traditional screw together frames. Includes screws and screw covers (caps or plugs).
• Perfect for side entry and back patio doors
• Tempered Safety Glass
• Double Pane Glass
• Thermally sealed, air and water tight

Description

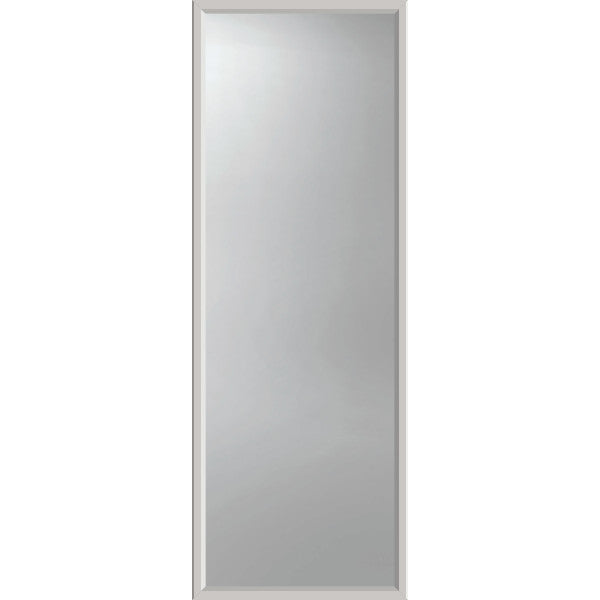

Clear Door Glass
Clear doorglass comes in many shapes and sizes. You are sure to find a shape that works for your entry door.

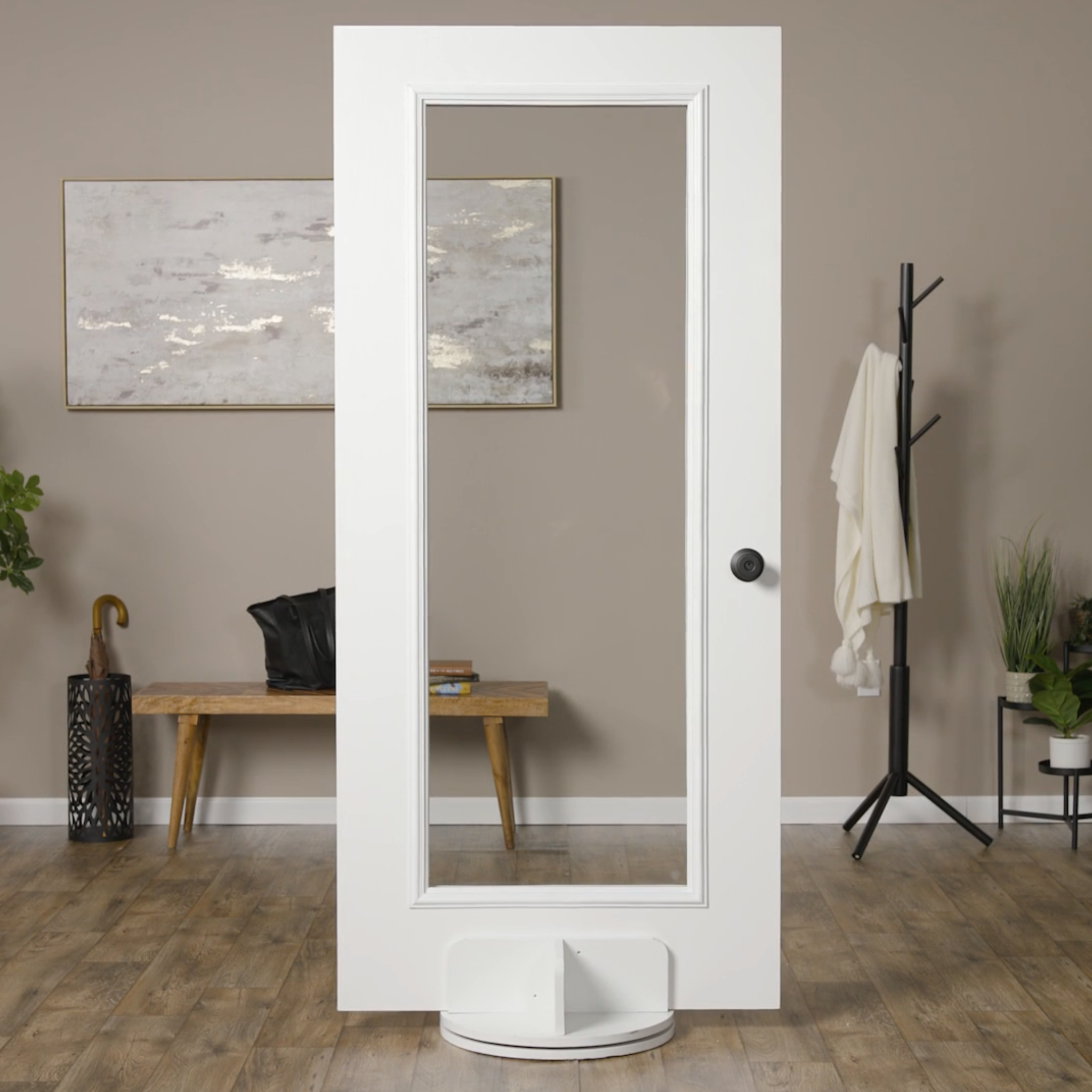

Door Glass with Frame Kit
This door glass kit is designed to fit a wide variety of exterior doors manufactured by Therma Tru, Masonite, Jeld-Wen, PlastPro and many others. This kit can be used to either replace existing glass in a door, or to add glass to a door. This kit contains 1 insulated glass panel and 1 door glass frame set. The door glass frame set consists of 1 inner and 1 outer high performance, molded plastic frame. The outer frame has an air and water tight, factory applied seal that bonds the frame to the glass. Before ordering, ensure that the existing glass is held in place by raised molding. The guide below provides side window and frame kit dimensions:
Replacing Glass
Door Material: Steel or Fiberglass
Door Width: 36", 34", 32" and 30" (+/- 0.75")
Door Height**: 6'8" and 7'0" (+/- 0.75")
Door Thickness: 1.75"
Frame Kit Width: 24" (+/- 0.25")
Frame Kit Height: 66" (+/- 0.25")
**This kit will also work for an 8'0" door with an existing frame measuring 24"x66".


Adding Glass
Door Material: Steel or Fiberglass
Door Width: 36", 34", 32" (+/- 0.75")
Door Height*: 6'8" and 7'0" (+/- 0.75")
Door Thickness: 1.75"
Door Panel: 6 Panel Door, 4 Panel Door, 12 Panel Door, 9 Panel Door, 3 Panel Door, and Flush Door
Door Panel Width: 23" (+/- 0.5")
Door Panel Height: 65" (+/- 0.5")
*This kit will work with a 6 panel, 8'0" door for adding glass.

Please consult the Measurement Guide for any questions on identifying the correct size door, side window or door glass frame kit for your entry system.

Typical Industry Names for the Kit
Full Light (6'8 Doors)
Three Quarter Light (8'0" Doors)


+ Read More

Guaranteed Fit Program

Guaranteed Fit Program

In a perfect world, everything fits right – the first time. You can achieve this enlightened state of mind with Zabitat’s Risk-Free Fit Guarantee. Submit the requested information and a photo or two of your application (front door, slider, etc.). Our trained experts will review your submission within 1 business day. If everything is copacetic, you will receive a verification for fit. If your product selection won’t work with your application, you will receive a response with new product recommendations or other options.

Moral of the story is, "Measure twice, order once!". In the rare event that a Zabitat expert gets it wrong you are guaranteed a full refund or an exchange if the proper size unit is available, and return shipping fees are on us. *Please note, we are unable to guarantee a fit for arch (rounded) glass.

Specifications

  • Door Cut-Out Dimensions: 23 in. x 65 in.
  • Frame Type: Flat-Profile Plastic
  • Glass Type: Clear Glass
  • Warranty: 20 Year Glass Seal Warranty
  • Product Weight (lbs.): 47
  • Door Thickness: 1-3/4 in.
  • Frame Kit Size: 24 in. x 66 in.
  • Frame Light Pattern: 1 Light
  • Glass Panel Thickness: 1 Inch
  • Glass Shape: Rectangle
  • Glass Size: 22 in. x 64 in.
  • Light Pattern: 1 Light
  • Manufacturer: ODL, Inc.
  • Energy Efficient: No
  • Glass Insulation: Double Pane
  • Glass Style: Classic
  • Category: Clear Door Glass
  • Privacy Rating: 1
  • Impact Resistant: No
  • Tempered Safety Glass: Yes
  • STC Rating: 28
